Product Overview
Thermocouple
DTC

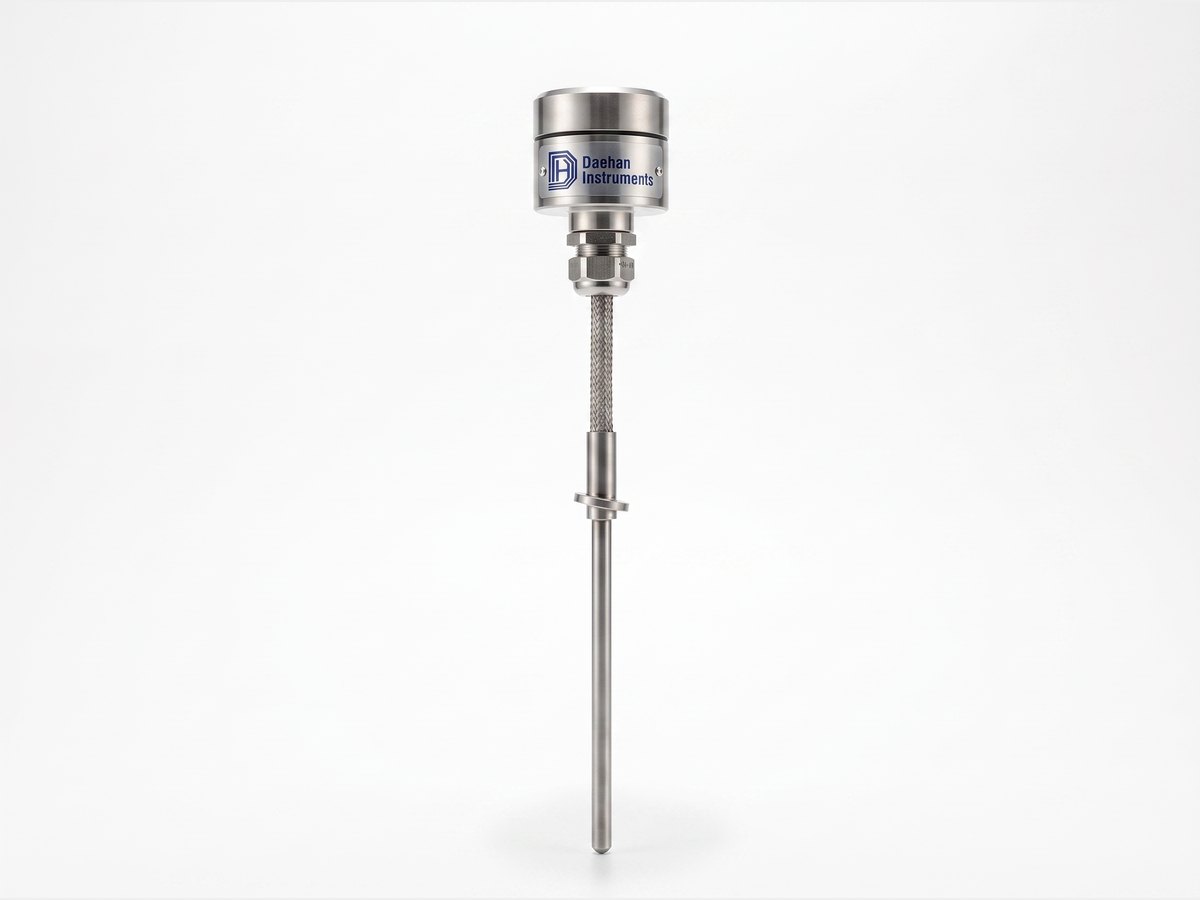

The DTC thermocouple is a thermocouple built in sheath pipe (protection tube) form.
The measuring range is 0~1200 ℃ for type K and 600~1600 ℃ for type R; types J, T, E, N, B and S are also manufactured.
The sheath material is selected from STS304, STS316, STS310, STS446, Inconel600 and Hastelloy, with threaded (Screw) or flanged (Flange) mounting. The applicable standard is ASTM E230.
K: 0 ~ 1200 ℃R: 600 ~ 1600 ℃Screw & FlangeASTM E230
English description
Features : Thermocouple shaped sheath pipe. Mounting : Screw & Flange. Range : K=0~1200℃, R=600~1600℃, Etc=J, T, E, N, B, S. Sheath Material : STS304, STS316, STS310, STS446, Inconel600, Hastelloy. Regulations : ASTM E230.
