Product Overview

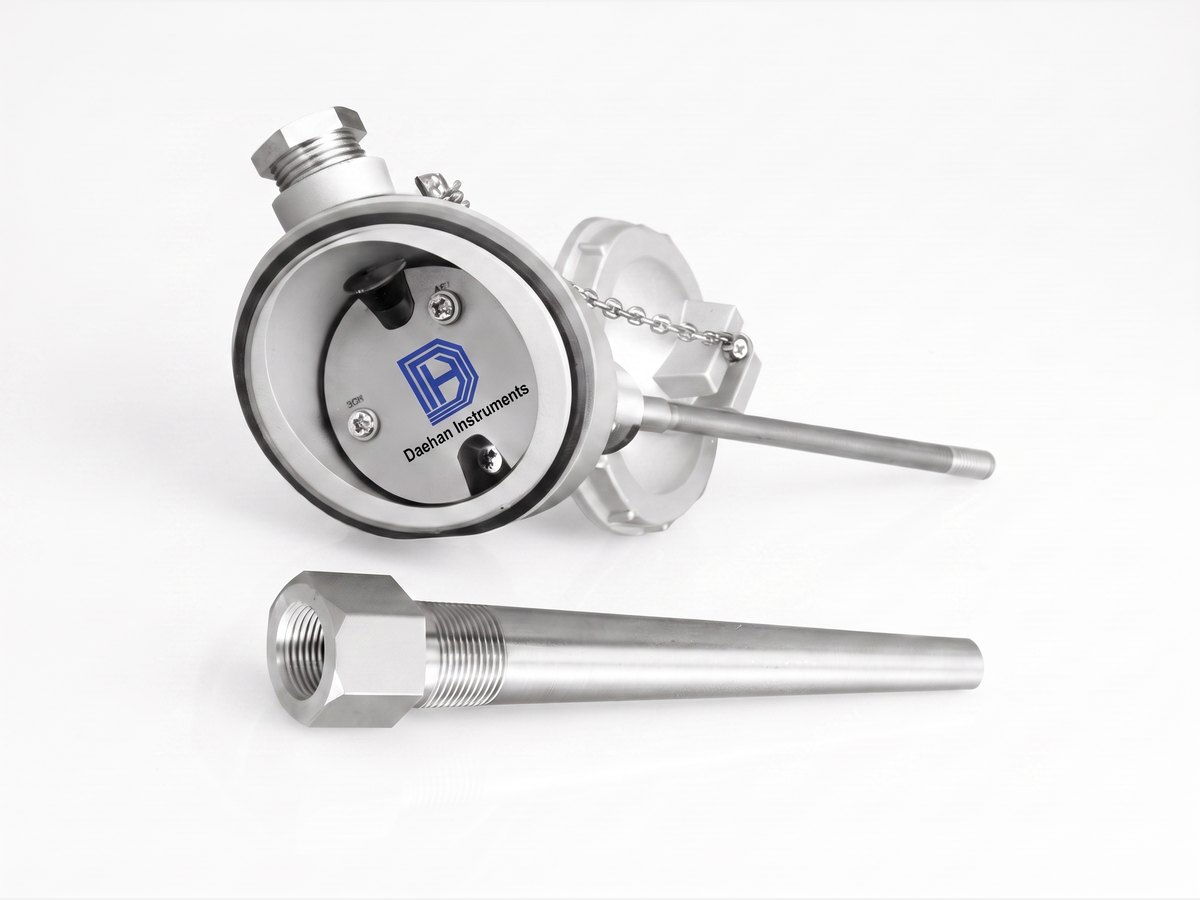

Temperature Transmitter
DHRTDHTC
The DHRT temperature transmitter has a built-in PT100 Ω RTD, with a measuring range of −200~600 ℃.
The DHTC temperature transmitter has a built-in thermocouple, with a measuring range of 0~1200 ℃.
For both models, the sheath material is selected from STS304, STS316 and Inconel600, mounting is threaded (Screw) or flanged (Flange), and the output is 4-20mA 2-wire (2-Wire) on DC24V power.
DHRT: −200 ~ 600 ℃ (PT100 Ω)DHTC: 0 ~ 1200 ℃ (thermocouple)DC 24V · 4-20mA 2-WireScrew & Flange
English description
DHRT — Features : Transmitter containing PT100 ohm. Range : -200~600℃. DHTC — Features : Transmitter containing thermocouple. Range : -0~1200℃. Mounting : Screw & Flange. Sheath Material : STS304, STS316, Inconel600. Power : DC24V. Output : 4-20mA 2-Wire.
