Flow Conditioner (Flow Straightener) Flow Conditioner

Name: Flow Conditioner (Flow Straightener)
Brand: Daehan Instruments

MODEL : DH19-TB

A tube bundle (Tube Bundle) type flow straightener that stabilizes the flow by arranging 19 tubes in parallel inside the pipe. Applied when the straight run upstream of a differential-pressure flow meter is insufficient.

Product Overview

Flow Conditioner (Flow Straightener)

DH19-TB

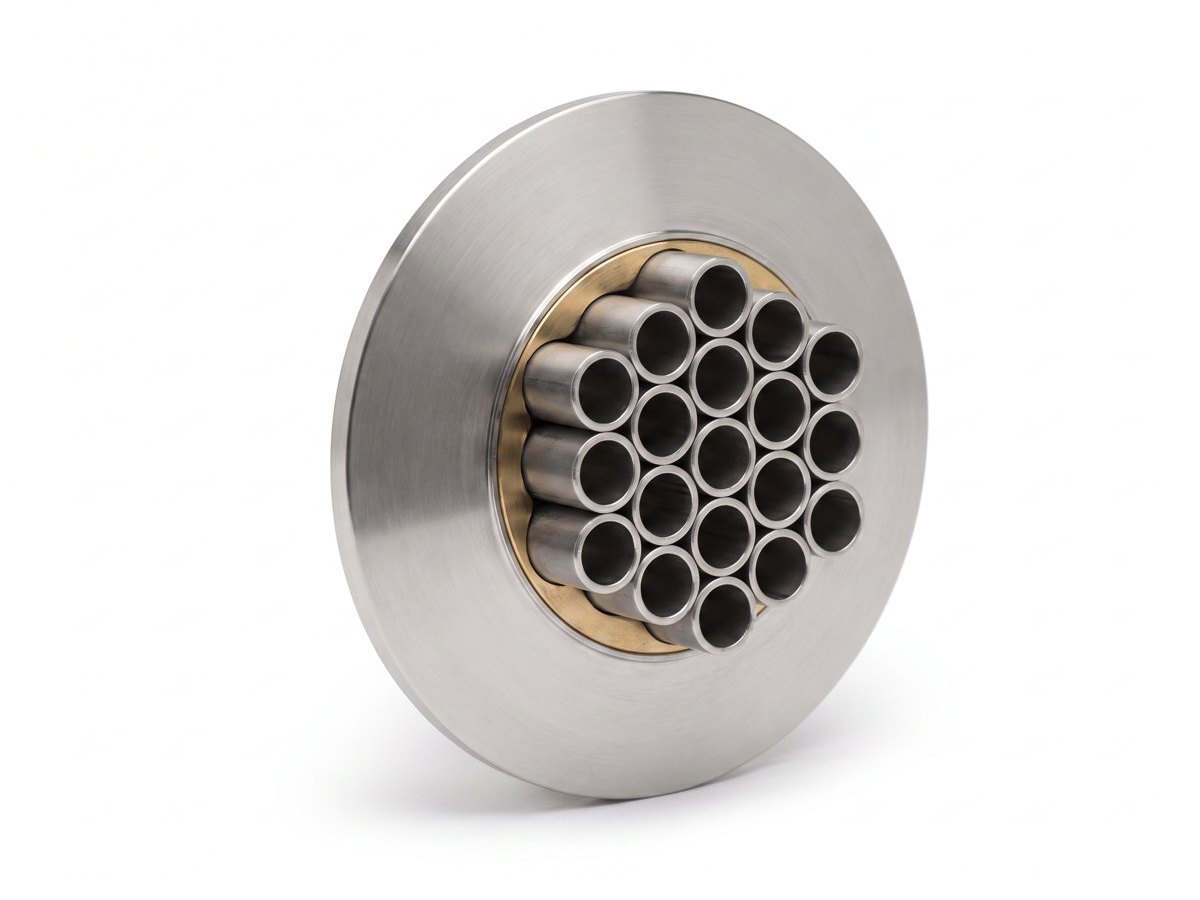

The DH19-TB flow conditioner arranges 19 tubes in parallel inside the pipe to stabilize the flow.

The material is selected from STS304, STS316, Inconel, Monel and Hastelloy, and it is mounted between flanges of 150# ~ 2500#.

The applicable standard is ISO 5167-1.

19-Tube BundleFlange 150# ~ 2500#ISO 5167-1STS304 / STS316 · Inconel · Monel · Hastelloy

English description

19 tubes are arranged in pipe in parallel for stability of fluid-flow. Material : STS304, STS316, Inconel, Monel, Hastelloy. Mounting : Flange 150#, 300#, 600#, 900#, 1500#, 2500#. Regulations : ISO 5167-1.

Technical Specifications

Detailed conditions are confirmed at quotation.

Item	Value
Features	19 tubes arranged in parallel inside the pipe to stabilize the flow
Materials	STS304, STS316, Inconel, Monel, Hastelloy
Connection (Mounting)	Flange 150#, 300#, 600#, 900#, 1500#, 2500#
Standards	ISO 5167-1

Standards

ISO 5167-1

Download Documents

Product Catalog PDF

PDF

Flow Conditioner (Flow Straightener) Datasheet PDF

Printable datasheet with the specifications, dimensions and ordering information on this page (same content as the web page, generated automatically)

PDF

General Product Catalog 2024

p.17 Flow Conditioner DH19-TB· 23p

View all catalogs
