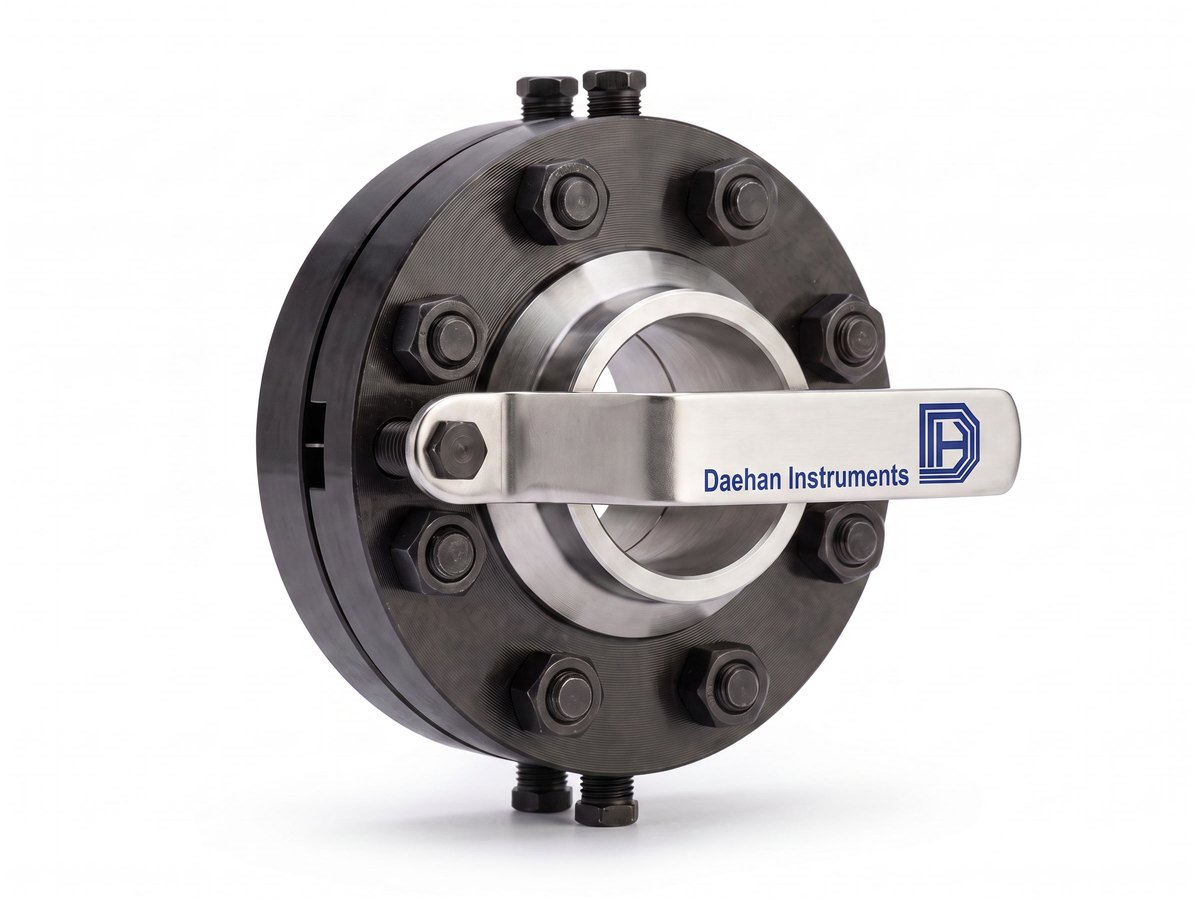

Orifice Flange Assembly (Orifice Plate & Flange Assembly)

DHOF-W

Orifice flanges are one of the most economical means of measuring flow, and Daehan Instruments' orifice flanges are manufactured specifically for accurate measurement. Automatic machine tools are used to meet the strict tolerances and recommendations required for the flanges, with close attention to tap position, bore surface condition, and machining of the bolt and flange faces.

Orifice flanges are manufactured from forged steel A.S.T.M. A-105. Other materials are manufactured by special order with extended delivery.

The DHOF-W assembly includes a pair of orifice flanges, an orifice plate, and bolts, nuts and gasket (per the ordering code table), and can be supplied with a meter run (Meter Run) if required.

Bolt · Nut · Gasket includedWN / SW / SO flangesTaps NPT · SW 1/2 · 3/4Accuracy ±1.5%

English description

How DAEHAN Orifice Flanges Provide Better Measurement: Orifice flanges one of the most economical means of measuring flow, and DAEHAN Orifice Flanges are specially manufactured to be the most accurate. Automatic machine tools enable DAEHAN to meet the most stringent tolerances and recommendations for flanges, with careful attention given to tap location, bore smoothness, bolt and flange facings. DAEHAN Orifice Flanges are made of forged steel, A.S.T.M. A-105. Other materials are available on special order and extended delivery.

Types · model configuration

Specification comparison by model

Technical Specifications

Detailed conditions are confirmed at quotation.

Item	Value
Orifice flange types	Weld Neck Type, Socket Weld Type, Slip On Type
Flange material	Forged steel A.S.T.M. A-105 (other materials by special order)
Flange material (options)	A105, A182 F304, A182 F316, A182 F11, A182 F22, A182 F51, A350 LF2, etc
Flange rating (Flange Rating)	ANSI 150, 300, KS, JIS 10K 20K, AWWA
Tap type	Flange Taps, Corner Taps, D-D/2 Taps
DP tap connection (Diff' Taps)	NPT 1/2, NPT 3/4, SW 1/2, SW 3/4
Flange Tap position	25mm from the orifice plate, both upstream and downstream

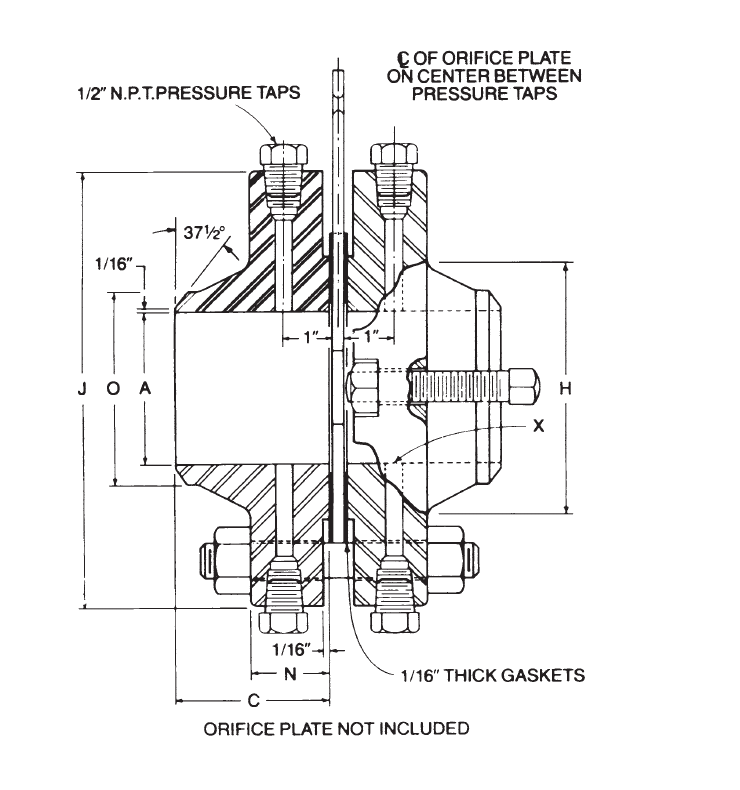

Assembly section drawing notes	1/2" N.P.T. pressure taps, 1/16" thick gasket, 37½° weld bevel (Weld Neck)
Assembly contents	Orifice flanges + plate + Bolt, Nut, Gasket (Meter Run optional)
Assembly drawing parts list (example)	Flange A105 · Plate SUS316 · Gasket (MAX 350 °C) · Boss A105 PT 1/2 · Bolt & Nut A193 B7 Stud · Pipe C/S (user scope) ※ Example approved drawing of an 1800A PN10 D-D/2 tap assembly; specifications vary by project
Plate material	304SS, 304L SS, 316SS, 316L SS, Monel, Hastelloy, Inconel, Cu-Ni, PTFE, Glass, Ni·Cr·Mo Alloy Steel (A182 F11 to 91)
Accuracy / turndown / applicable standards	±1.5% / 4:1 / ISO5167-2

Standards

• ISO 5167-2
• ISO 5167
• JIS Z 8762
• ASME
• KS A 0612
• ASTM A105

Installation requirements

Straight run and installation notes

• The Weld Neck type is butt-welded to the pipe, the Socket Weld type is socket-welded, and the Slip On type is slipped over the pipe and welded. The flange rating is selected to match the process piping.
• With Flange Taps, the upstream and downstream taps are located 25mm from the plate. The tap connection is selected from NPT 1/2 · 3/4 or SW 1/2 · 3/4.
• Impulse piping (steam · liquid · gas service) and straight run lengths are determined according to the β ratio on the basis of ISO 5167, as described on the 'Orifice Tap Types · Installation Piping Requirements' page.
