Name: Gas Flow Meter & Switch — Gas Flow Meter & Switch
Brand: Daehan Instruments

Product Overview

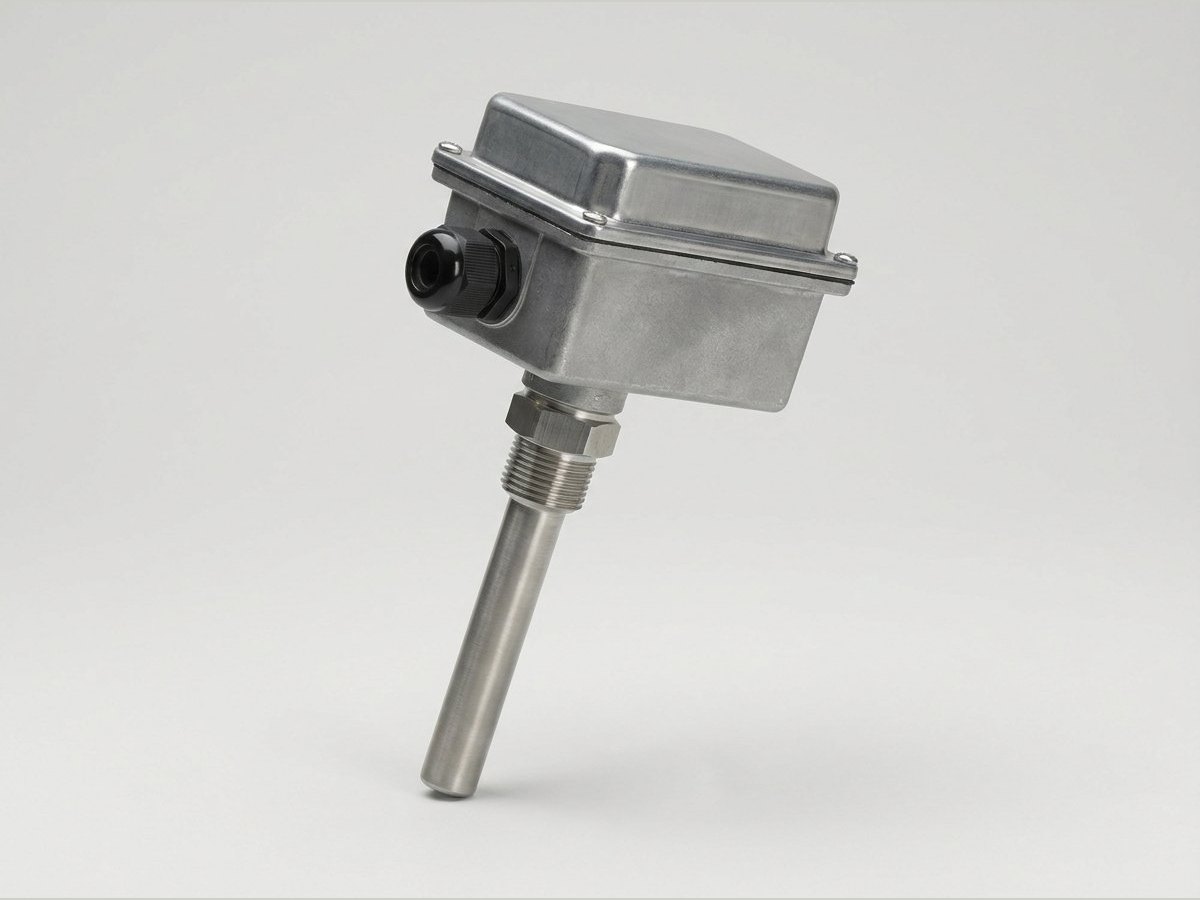

Gas Flow Meter & Switch (Gas Flow Meter & Switch)

DPDTDPLTDSDTDSLT

DPDT / DPLT / DSDT / DSLT gas flow meters & Switch is for measuring the flow of non-corrosive gases that do not contain sludge.

DPDT · DPLT have an LCD display and DC24V power; DSDT · DSLT have an LED display, AC100~220V 50/60Hz power and are explosion-proof (Explosion proof type).

The material is STS304 or STS316, the connection is 150# · 300# flange, the applicable piping is 3/8B ~ 24B (10A ~ 600A), and the turndown is 6:1.

The output is 4~20mA or 1~5V DC plus a contact (Contact) output, and the accuracy is ±1.5%.

3/8B ~ 24B (10A ~ 600A)Turndown 6:1±1.5%Explosion-proof type (DSDT / DSLT)

English description

Features : For Gas not included sludge and incorrodible (DSDT / DSLT : Explosion proof type). Turndown Range : 6:1. Material : STS304, STS316. Mounting : Flange 150#, 300#. Installation : 3/8B~24B(10A~600A) Pipe. Display : LCD (DPDT, DPLT) / LED (DSDT, DSLT). Power : DC24V (DPDT, DPLT) / AC100~220V 50/60Hz (DSDT, DSLT). Output : 4~20mA or 1~5V DC, Contact. Accuracy : ±1.5%.

Types · model configuration

Specification comparison by model

Item	DPDT LCD · DC24V	DPLT LCD · DC24V	DSDT LED · AC · explosion-proof	DSLT LED · AC · explosion-proof
Features	For non-corrosive gases free of sludge	For non-corrosive gases free of sludge	For non-corrosive gases free of sludge · explosion-proof	For non-corrosive gases free of sludge · explosion-proof
Turndown	6:1	6:1	6:1	6:1
Materials	STS304, STS316	STS304, STS316	STS304, STS316	STS304, STS316
Connection	Flange 150#, 300#	Flange 150#, 300#	Flange 150#, 300#	Flange 150#, 300#
Applicable piping	3/8B~24B (10A~600A) Pipe	3/8B~24B (10A~600A) Pipe	3/8B~24B (10A~600A) Pipe	3/8B~24B (10A~600A) Pipe
Display	LCD	LCD	LED	LED
Power supply	DC24V	DC24V	AC100~220V 50/60Hz	AC100~220V 50/60Hz
Output	4~20mA or 1~5V DC, Contact	4~20mA or 1~5V DC, Contact	4~20mA or 1~5V DC, Contact	–
Accuracy	±1.5%	±1.5%	±1.5%	–

Technical Specifications

Detailed conditions are confirmed at quotation.

Item	Value
Fluids	Non-corrosive gases not containing sludge
Turndown	6:1
Materials	STS304, STS316
Connection (Mounting)	Flange 150#, 300#
Applicable piping	3/8B~24B (10A~600A) Pipe
Display	LCD (DPDT, DPLT) / LED (DSDT, DSLT)
Power supply	DC24V (DPDT, DPLT) / AC100~220V 50/60Hz (DSDT, DSLT)
Output	4~20mA or 1~5V DC, Contact
Accuracy	±1.5% ※ Based on DPDT, DPLT, DSDT
Explosion-proof	Explosion proof type (DSDT, DSLT)

Download Documents

Product Catalog PDF

PDF

Gas Flow Meter & Switch Datasheet PDF

Printable datasheet with the specifications, dimensions and ordering information on this page (same content as the web page, generated automatically)

PDF

General Product Catalog 2024

p.16 Gas Flow Meter & Switch DPDT / DPLT / DSDT / DSLT· 23p
